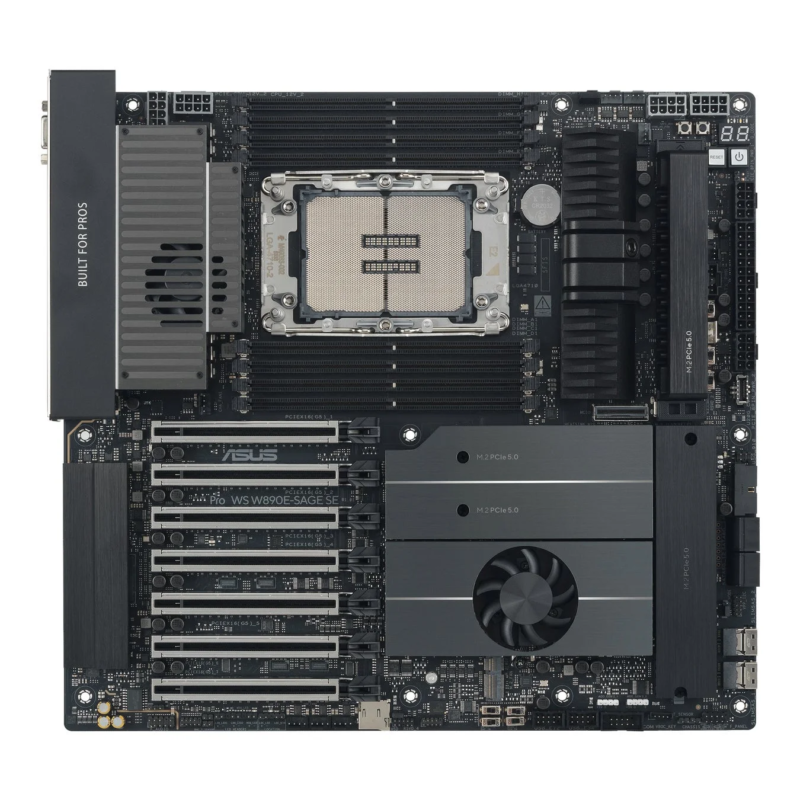

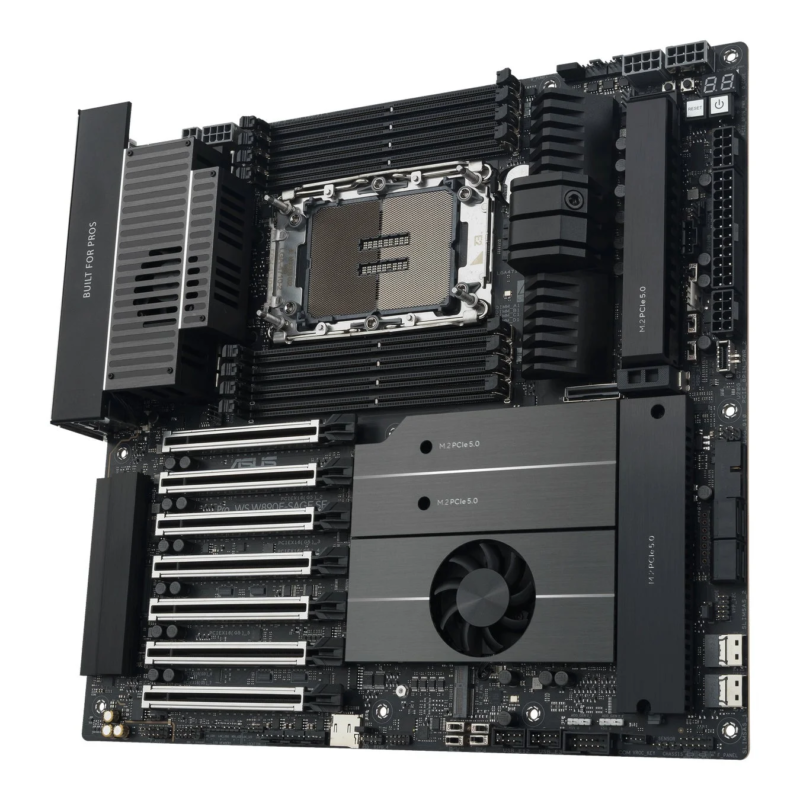

Pro WS W890E-SAGE SE: Advanced Connectivity and Robust Power
The Pro WS W890E-SAGE SE model offers extensive high-speed connectivity options, including seven PCIe 5.0 x16 slots, dual 10Gb LAN ports, four M.2 slots, an MCIO connector, two rear USB4 40Gbps Type-C ports, and SlimSAS NVMe support. This configuration enables high-speed connections for multiple GPUs, storage, and networking.

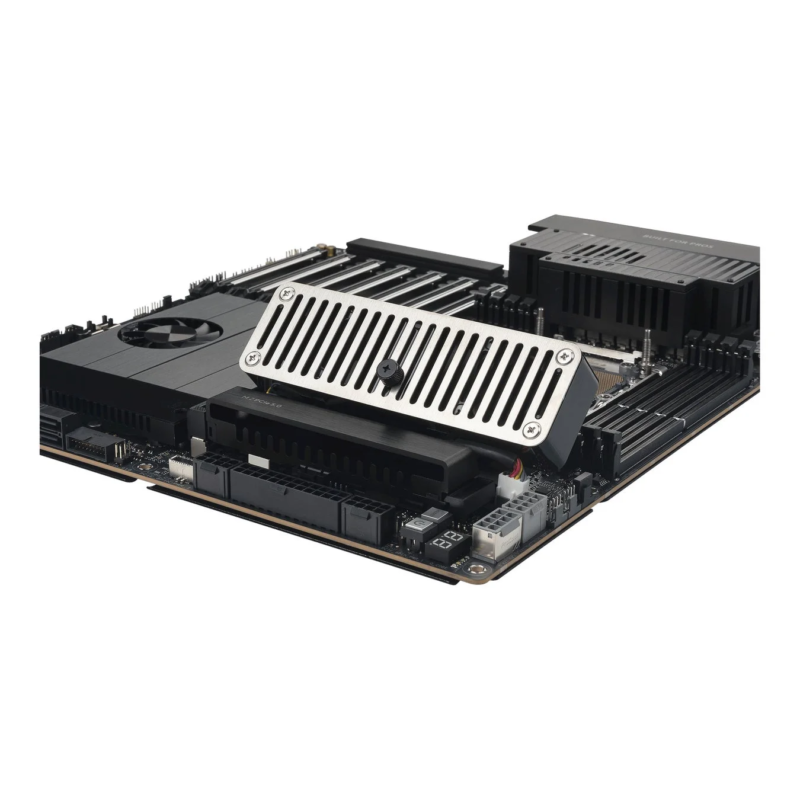

It features a powerful 16+2+2+1+2 power stage design with support for dual power configurations. The thermal design includes a heatsink with an active fan on the left side of the VRM, an AngleBoost fan kit for both memory and VRM cooling on the right, and heatsinks with thermal pads for the M.2 slots, ensuring stable operation under heavy loads.
The motherboard supports CPU and DRAM overclocking, enhanced by robust power delivery and advanced cooling modules for improved stability. It also supports XMP, achieving speeds of up to 8800MT/s and 256GB modules, with NitroPath DRAM technology to boost memory performance, stability, and compatibility.
For remote management, the Pro WS W890E-SAGE SE integrates server-grade IPMI capabilities with an onboard AST2600 BMC controller connected via a dedicated LAN port. This enables real-time hardware and software monitoring and management through the ASUS Control Center Express software.
Product page for Pro WS W890E-SAGE SE:
https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w890e-sage-se/

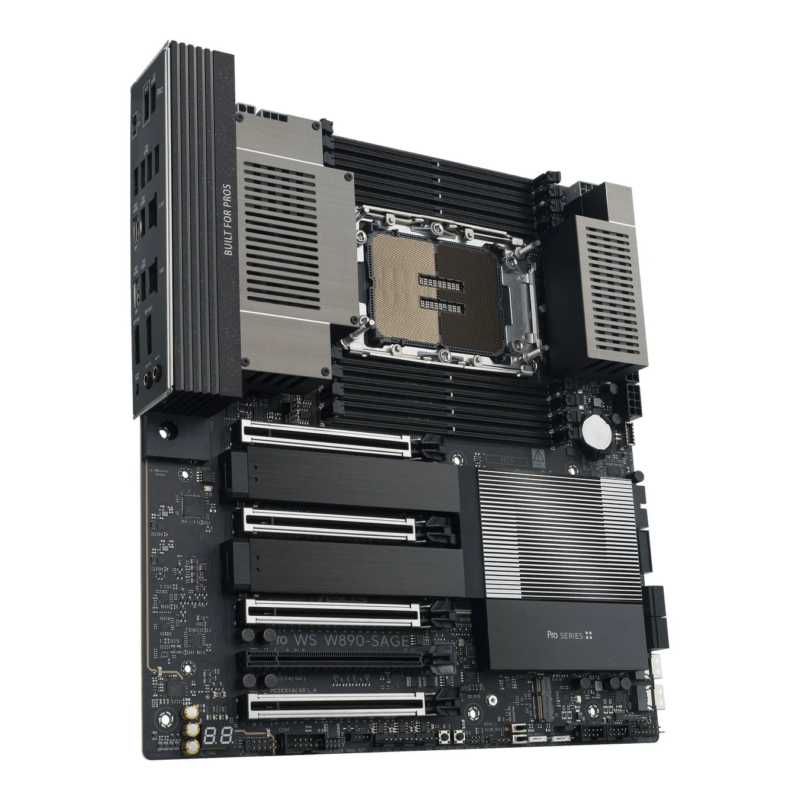

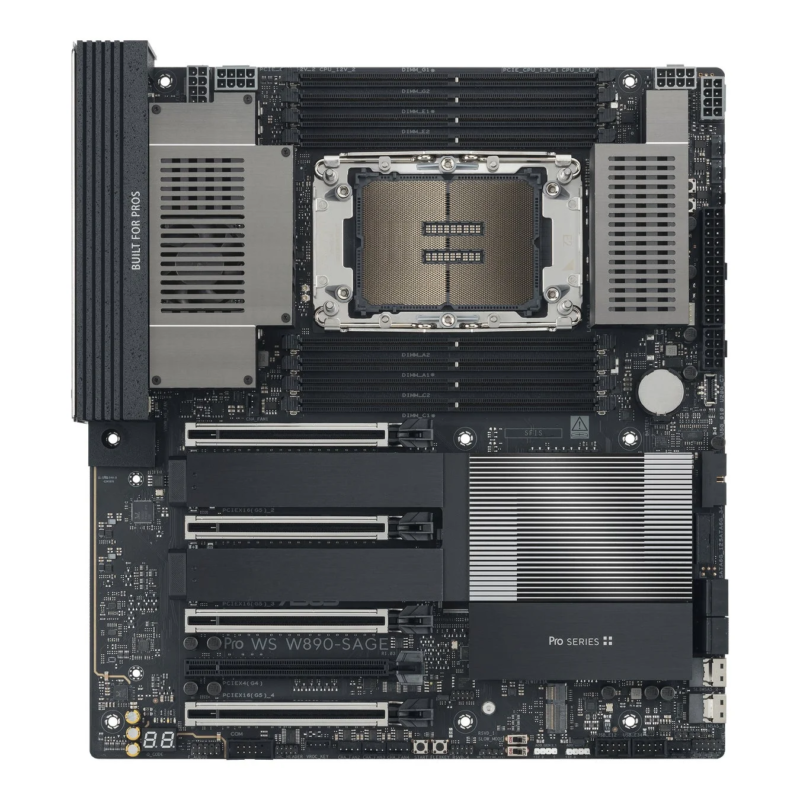

Pro WS W890-SAGE: High Performance and User-Friendly Design
The Pro WS W890-SAGE also offers high-speed connectivity with four PCIe 5.0 x16 slots, a 10Gb LAN port, four M.2 slots, two rear USB4 40Gbps Type-C ports, and SlimSAS NVMe support, facilitating high-speed connections for multi-GPU setups, storage, and networking.
Its power and thermal design features a powerful 12+2+2+1+2 power stage and supports dual power configurations. Cooling is managed by heatsinks and active fans for the VRM and chipset, along with M.2 heatsinks equipped with backplates and thermal pads.
Similar to its counterpart, the Pro WS W890-SAGE supports CPU and DRAM overclocking, offering enhanced stability during overclocking due to its robust power delivery and advanced cooling modules. It also supports XMP, reaching speeds of up to 8800MT/s and 256GB modules, and includes NitroPath DRAM technology to improve memory performance, stability, and compatibility.
This model incorporates innovative DIY features and robust reliability. It includes PCIe SafeSlot, SafeDIMM, M.2 Q-Latch, Q-Slide, and Q-Release for user-friendly assembly. It is optimized for 24/7 operation, having undergone testing at up to 45°C and 80% humidity, making it suitable for diverse operating environments.
Product page for Pro WS W890-SAGE:
https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w890-sage/
