I-PEX Launches CABLINE(R)-UMF, a 0.4 mm Pitch FPC Connector with Mechanical Lock

I-PEX Corporation, a leading manufacturer of connectors, has developed “CABLINE(R)-UMF,” an FPC connector optimized for internal connections in information and communication devices. Sales are scheduled to commence in March 2026. This new connector is an addition to the “CABLINE(R)” series, known for its high-speed transmission capabilities and for holding a significant market share in fine coaxial/twinaxial connectors for notebook PC display panel connections, according to market data.

“CABLINE(R)-UMF” is a vertical mating type FPC connector with a 0.4 mm pitch, featuring a mechanical lock and a maximum mating height of 2.35 mm. It supports high-speed transmission at 40 Gbps/lane PAM3 and incorporates ZenShield(R) for robust EMC countermeasures. By applying the structure and characteristics of the “CABLINE(R)” series, known for its high-speed transmission, to FPC connections, this new product aims to enhance design flexibility in information and communication equipment.

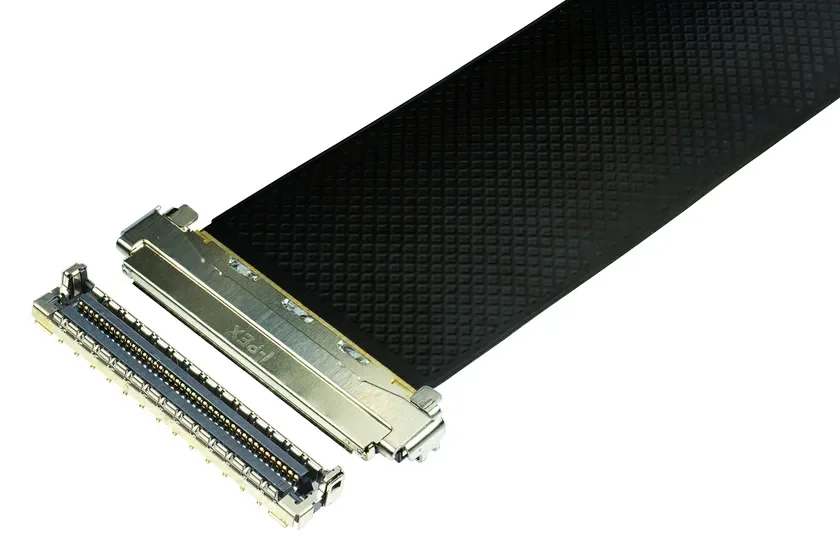

FPC connection connector "CABLINE(R)-UMF"

Background of Development

The market for information and communication devices, including notebook PCs, has seen a continuous trend towards faster internal transmission speeds and component miniaturization. This trend presents challenges such as reducing transmission loss with increasing data speeds and addressing interference issues with antenna frequency bands in IoT devices, necessitating effective noise countermeasures for electronic components.

Furthermore, the miniaturization of communication devices has led to tighter space constraints internally. While fine coaxial cables have traditionally been adopted for high-speed transmission in applications like display panel connections, there is a growing demand for transmitting high-speed signals using lower-profile FPCs.

I-PEX has contributed to achieving high-speed transmission connections within information and communication devices through the development of the “CABLINE(R)-UM” fine coaxial connector (0.4 mm pitch, vertical mating type), which incorporates ZenShield(R) for 360-degree EMC shielding. Building on this expertise, “CABLINE(R)-UMF” was developed as a connector capable of utilizing “CABLINE(R)-UM” for shielded FPC connections, further increasing product design flexibility for customers.

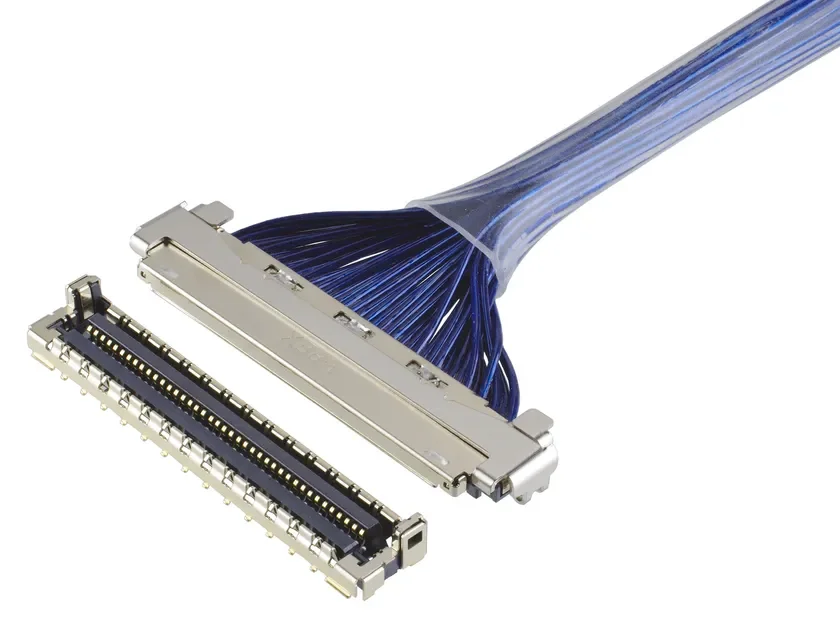

Fine coaxial connector "CABLINE(R)-UM"

Key Features

  • Optimal EMC Solution: Features full shielding with ZenShield(R) and a multi-point ground structure.

  • High Contact Reliability: Achieved through a lock cover and an effective mating length of 0.65 mm or more.

  • High-Speed Transmission: Optimized for 40 Gbps/lane PAM3 high-speed transmission connections.

  • Compact Design: Vertical mating type with a maximum mating height of 2.35 mm.

Comparison of “CABLINE(R)-UMF” and “CABLINE(R)-UM”

Product Name CABLINE(R)-UMF CABLINE(R)-UM
Cable Type FPC Fine Coaxial
Pitch 0.4 mm 0.4 mm
Mating Type Vertical Mating Vertical Mating
Number of Pins 40, 70 pins 30, 40, 50, 60, 70 pins
Mating Height 2.35 mm max. 2.35 mm max.

About CABLINE(R)

CABLINE(R) is an I-PEX series of fine coaxial/discrete cable connectors, ideally suited for connections in applications such as displays, camera modules, and servers. I-PEX has been a pioneer in fine coaxial cable connectors suitable for high-speed transmission, including the development of the world’s first fine coaxial connector, “CABLINE(R) I,” in 1996. The CABLINE(R) series holds the top market share for laptop panel connection connectors, according to market data.

About ZenShield(R)

ZenShield(R) is an I-PEX solution that provides excellent EMC countermeasures for small connectors. Connectors utilizing ZenShield(R) technology enable flexible board design, particularly in electronic devices with wireless communication functions where intra-system EMC issues require mitigation, allowing connectors to be placed near antennas.

About I-PEX Corporation

I-PEX Corporation identifies itself as a “Monozukuri Solution Expert” that delivers value through inspiration and surprise in the global market. Established in 1963 as “Dai-ichi Seiko,” a precision mold manufacturer, the company has since created numerous world-first and unique products and solutions. Currently, it operates in three business areas: “Connectors and Electronic Mechanical Components,” “Automotive Electrical and Related Components,” and “Semiconductor Equipment and Others.” By expanding its “cutting-edge solutions globally,” I-PEX aims to contribute to the exciting value creation of the digital society alongside its customers worldwide.
