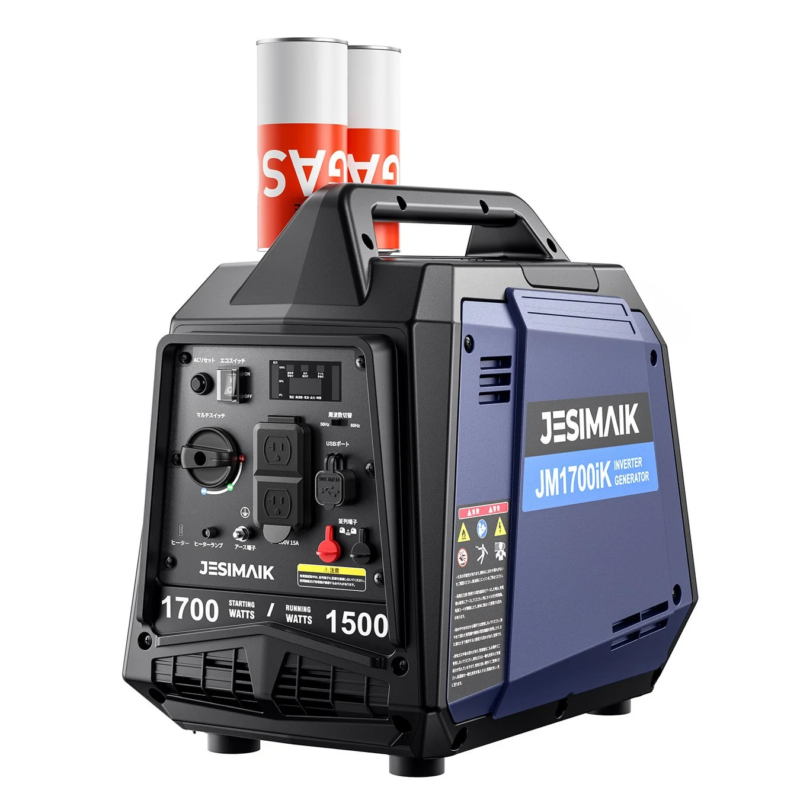

Features of the JM1700iK

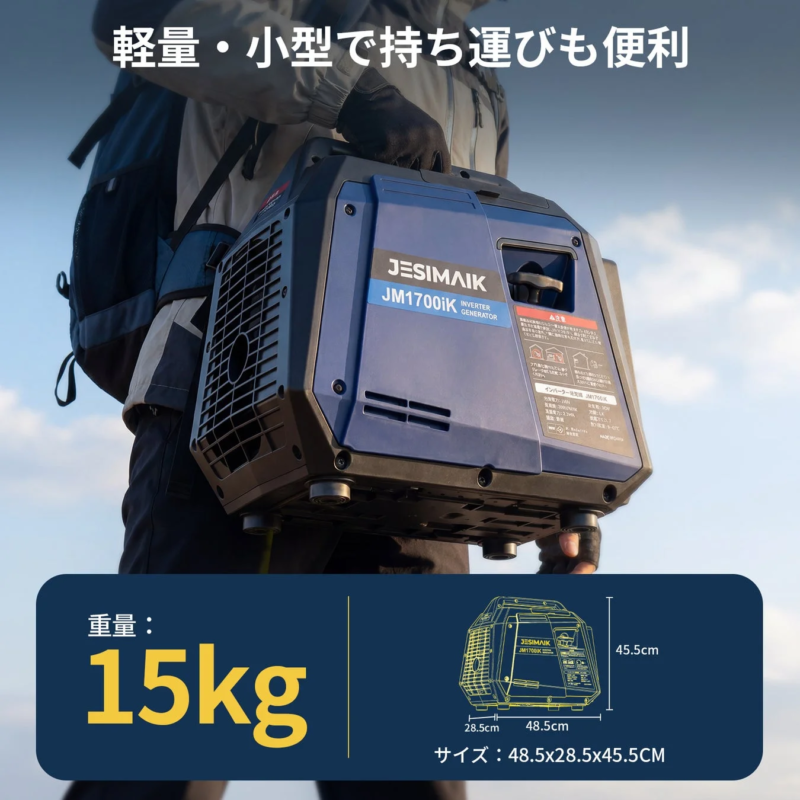

1. 1500W Rated Output with an Approx. 15kg Lightweight Design
The JM1700iK delivers a rated output of 1500W while weighing only approximately 15kg. This makes it easy to carry and move to necessary locations during power outages. Its compact design allows for space-saving storage at home or in a warehouse, making it a suitable disaster preparedness item that can be retrieved quickly when needed.

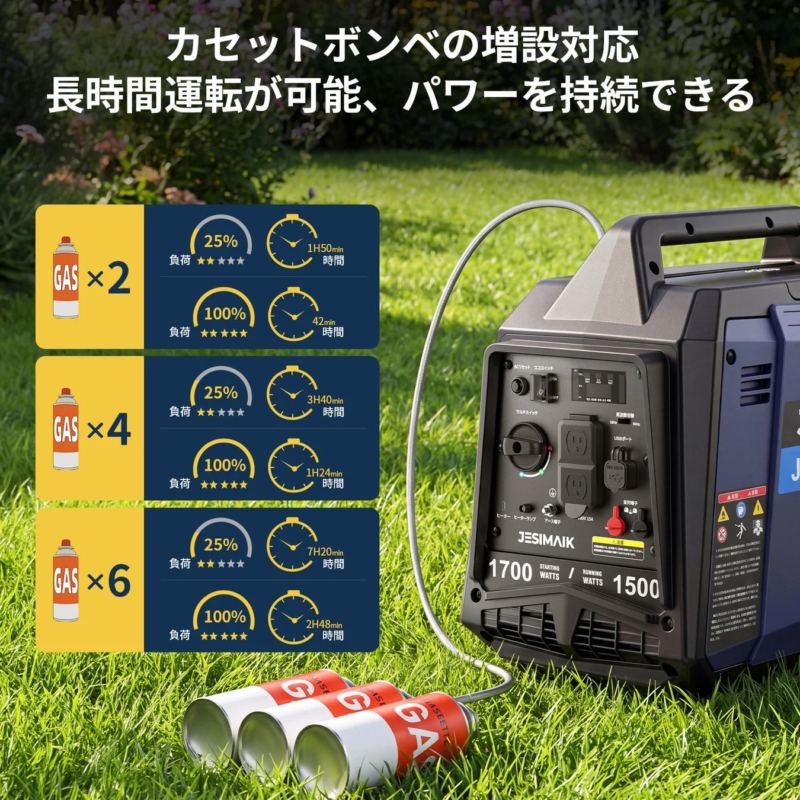

2. Multiple Cassette Gas Compatibility
Two cassette gas canisters can be directly attached to the unit simultaneously. With a separately sold three-way connection hose, additional cassette gas canisters can be connected to extend fuel supply according to usage needs. Cassette gas is readily available and can be shared with other appliances like portable gas stoves. Compared to gasoline, its daily storage conditions are relatively simpler, allowing for easy fuel stockpiling at home.
3. ECO Mode for Efficient Fuel Use
When using low-power consumption devices, energy-saving operation is possible with ECO mode. When using two cassette gas canisters, continuous operation is approximately 42 minutes at rated load and approximately 1 hour 50 minutes at 1/4 load. This mode is suitable for powering lighting, communication devices, and small home appliances, allowing for efficient use of limited fuel.

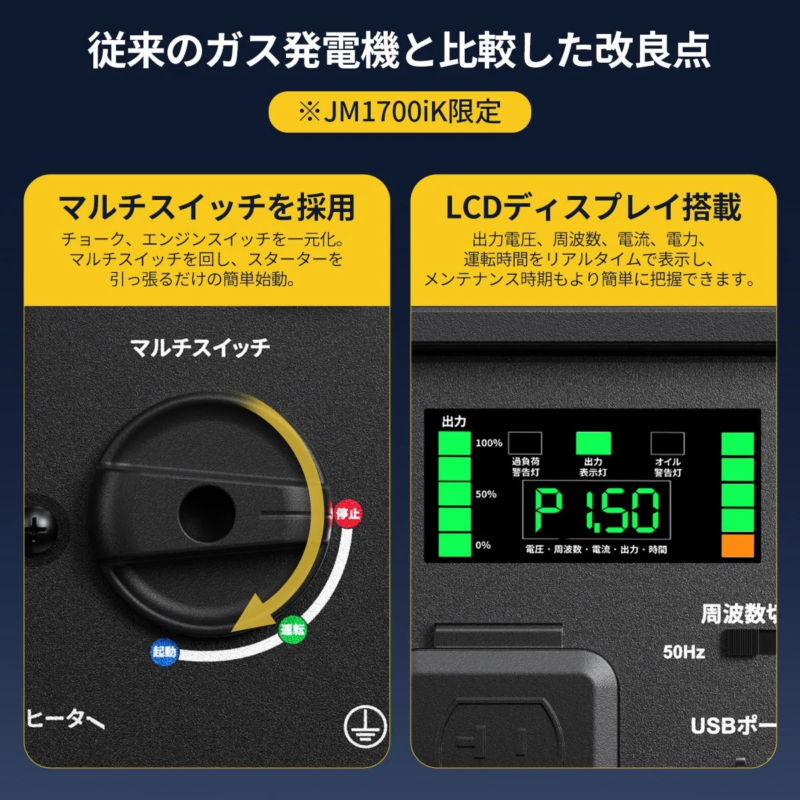

4. Easy Start with 3-in-1 Multi-Switch
The JM1700iK features a multi-switch that integrates three functions: fuel cock, choke, and engine switch. There is no need to operate multiple levers individually; simply turn the switch and pull the starter to begin operation. This design makes it easy for first-time generator users to operate, ensuring a smooth power supply during power outages or disasters.

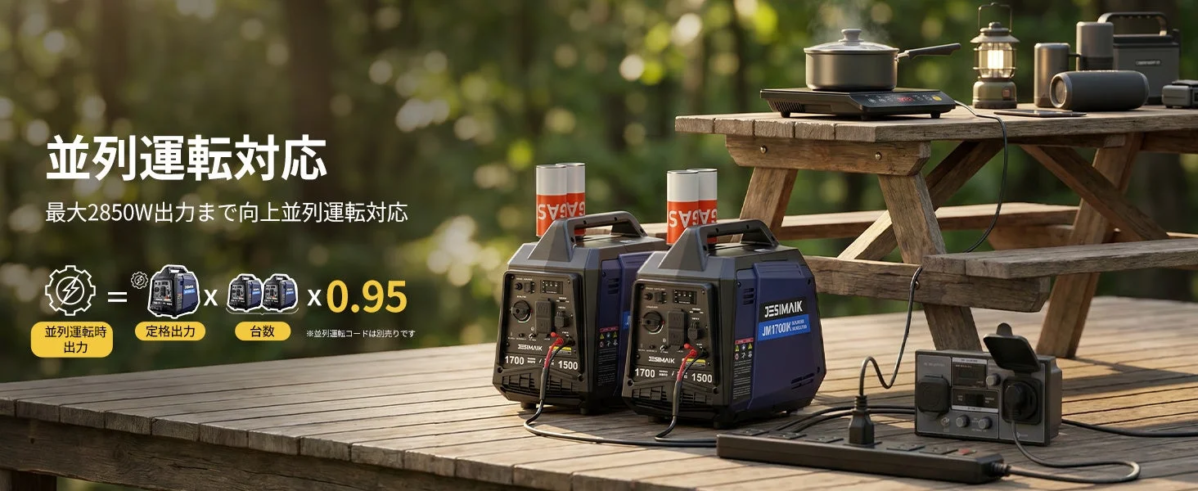

5. Output Expansion up to 2850W with Parallel Operation
The unit supports a rated output of 1500W on its own. By connecting two units in parallel, the output can be expanded up to a maximum of 2850W. High-output devices that may be challenging for a single unit can be powered with expanded output through parallel operation, broadening the range of usable home appliances and meeting diverse power needs.
6. User-Friendly and Safety Features
-
Low Noise Design: Operating sound is suppressed (approx. 56dB).
-
Durable Design: Constructed with robust materials and structure for long-term use.
-
Multiple Safety Protection Functions: Includes oil level low warning, overheat protection, and overload protection.
-
Multi-Function Display: Real-time display of output voltage, frequency, current, power, and operating time.
-
Pure Sine Wave Output: Supplies stable power with a waveform distortion rate of less than 2%.
-
USB-A/USB-C Fast Charging Ports: Total maximum output of 36W for direct charging of smartphones and tablets.
-
Low-Temperature Compatibility: At approximately 10°C, carburetor preheating supports starting. With cold-weather gas, it can start at -5°C and operate at -15°C with preheating.
Product Information
-
Model: JM1700iK
-
Generator Type: Multi-pole rotating field type
-
AC Rated Output: 1.5kVA
-
AC Maximum Output: 1.7kVA
-
AC Rated Voltage: 100V
-
AC Rated Current: 15A
-
Rated Voltage (USB-A): 5V-3A/9V-2A/12V-1.5A
-
Rated Voltage (USB-C): 5V-3A/9V-2A/12V-1.5A
-
Engine: 79cc Air-cooled 4-stroke OHV engine
-
Fuel: Cassette gas canister
-
Continuous Operating Time: Approx. 110 min (25% load) to Approx. 42 min (100% load)
-
Noise Level: Approx. 56dB (no load), 60dB (25% load)
-
Starting Method: Recoil start
-
Dimensions: 48.029.546.0cm
-
Dry Weight: Approx. 15kg
