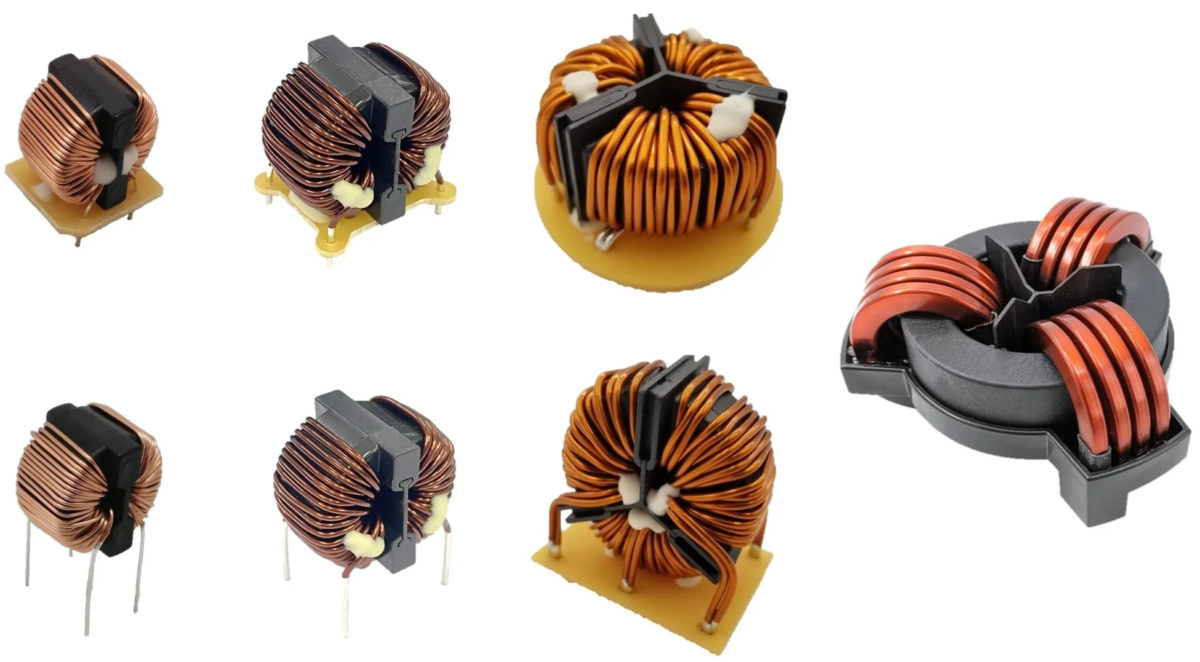

TOTAL 219 Specifications Lineup! Tokin Corporation Launches “SCF-X / SCT-X Series” Common Mode Choke Coils for Consumer and Industrial Equipment

Gadgets

Key Features

  • Core Materials:

    • Nanocrystal (SCF-X): Offers excellent noise suppression performance over a wide frequency range.

    • Mn-Zn Ferrite 10HT (SCT-X): Provides characteristics with high heat resistance and high saturation magnetic flux density.

  • Core Sizes:

    • Single-phase: 4 types (outer diameter 12/17/23/31mm)

    • Three-phase: 5 types (outer diameter 21/31/47/56/76mm)

  • Rated Voltage:

    • Single-phase: 250V/500V AC/DC

    • Three-phase: 500V/800V AC/DC

  • Operating Temperature Range: -40℃ to +130℃

  • Rated Current Range:

    • Single-phase: 1A to 22A

    • Three-phase: 1A to 110A

  • Inductance Range:

    • Single-phase: 0.07mH to 95.26mH

    • Three-phase: 0.13mH to 25.63mH

  • Shape: 2 types (vertical/horizontal)

  • Number of Specifications: TOTAL 219 items

Applications

These common mode choke coils are suitable for a variety of applications, including:

  • Audio equipment

  • Industrial machinery

  • Home appliances

  • Various power supplies

Product Details

For detailed product information, please refer to the AC Line Filter product lineup page:
https://www.tokin.com/products/emc-inductor/ac-line/?t=lineup
(This page includes links to product datasheets and online stores.)

For samples, inquiries can be directed to Tokin’s sales group or authorized distributors.
