ELECOM Launches MAGKEEP 7-in-1 Docking Station: Magnetic Attachment for Seamless Mobile Work Environments

Expand Your Work Environment Anywhere

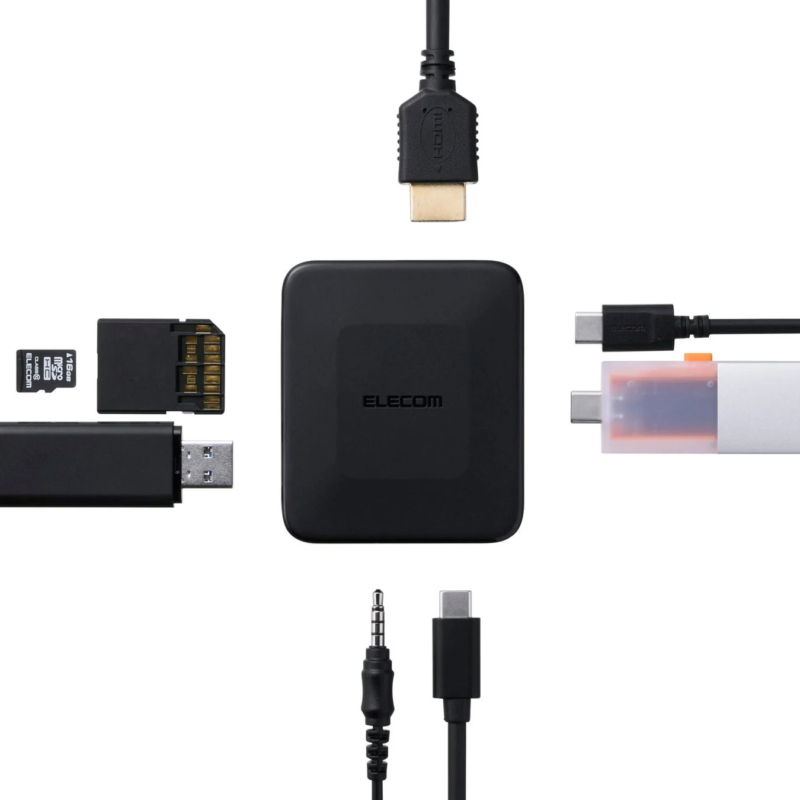

This docking station integrates a variety of ports to enhance productivity:

USB Ports: Equipped with one USB-A port and one USB Type-C™ port for connecting mice, USB memory sticks, and other peripherals. (Note: The USB Type-C port is for data transfer only and does not support video output.)
Charging Port: Features a dedicated USB Type-C charging port supporting USB Power Delivery. It can charge notebooks, smartphones, and tablets with a maximum input of 100W. (Note: The product itself consumes 10W, resulting in a maximum output of 90W. A 100W AC charger is required for 90W power delivery. The actual power supplied may vary depending on the connected device’s specifications. Ensure your device supports USB Power Delivery for charging via this port. This product does not include a mobile battery or wireless charging capabilities.)
HDMI Port: Includes an HDMI port capable of outputting high-definition, smooth video at up to 4K (3840×2160px)/60Hz. This is ideal for large-screen presentations in conference rooms or exhibitions, as well as for connecting smartphones to TVs or displays for media consumption. (Note: For video output, the output device must support DisplayPort™ Alternate Mode, and the input signal must be DisplayPort™ 1.4 compatible.)
Audio Jack: A φ3.5mm 4-pole stereo mini jack allows connection of earphones, headphones, or headsets, facilitating smooth online meetings and calls. (Note: Single-ear earphones or headsets are not supported.)

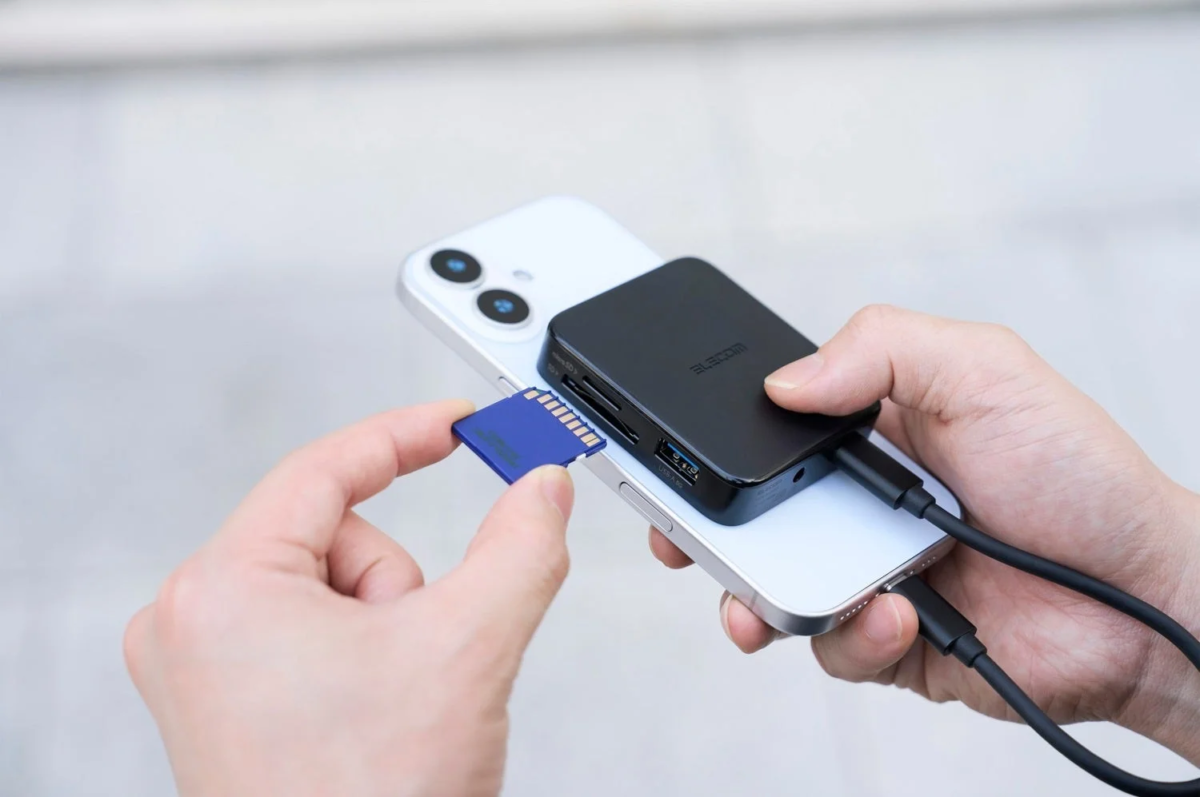

Card Slots: Features both an SD card slot and a microSD card slot, allowing simultaneous connection. This enables quick import, review, and organization of photo and video data from cameras (SD) and smartphones (microSD).

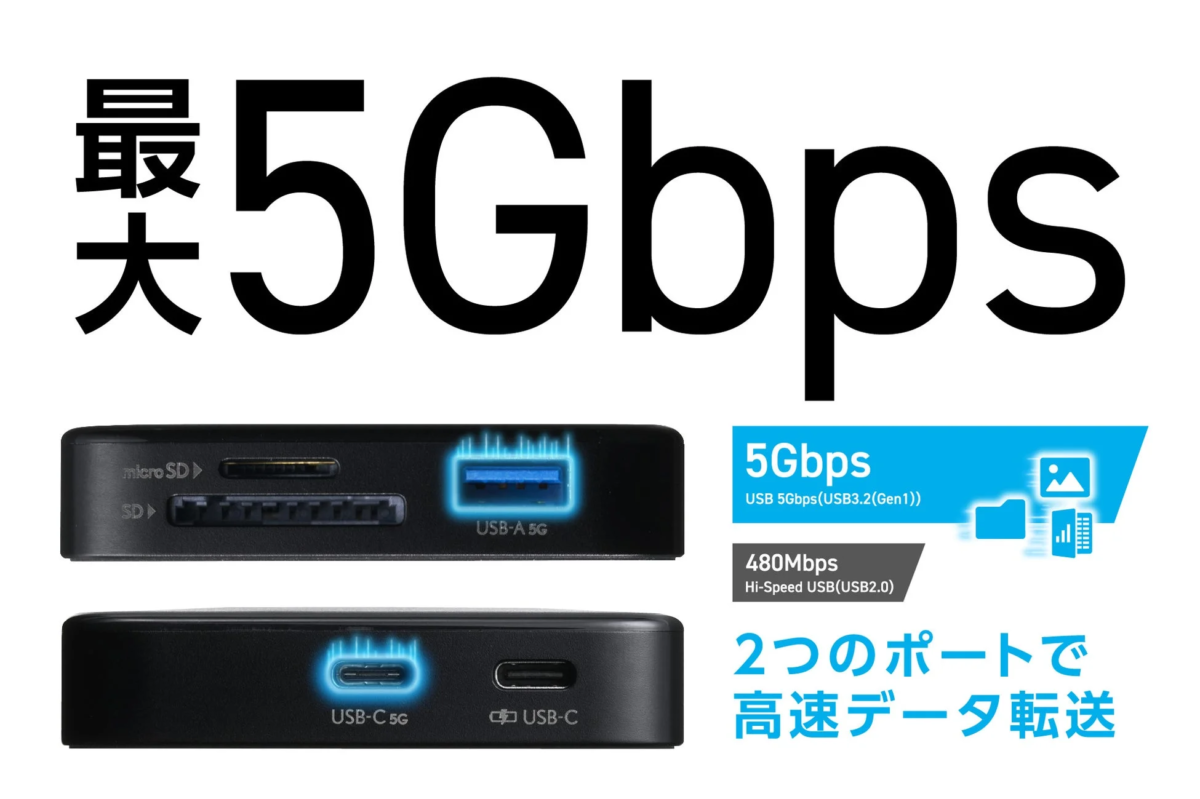

High-Speed Data Transfer: Supports USB 5Gbps (USB3.2 Gen1), offering approximately ten times the speed of Hi-Speed USB (USB2.0) for transferring large files like documents and photos. (Theoretical value. To utilize USB 5Gbps, the connected device must also support USB 5Gbps.)
Stable Connection: Engineered to minimize compatibility issues between connected devices, providing a smooth user experience. It incorporates a design that stabilizes communication data quality between the PC and the docking station, based on signal transmission and reception authentication tests. (Note: SD card lock function is not supported.)

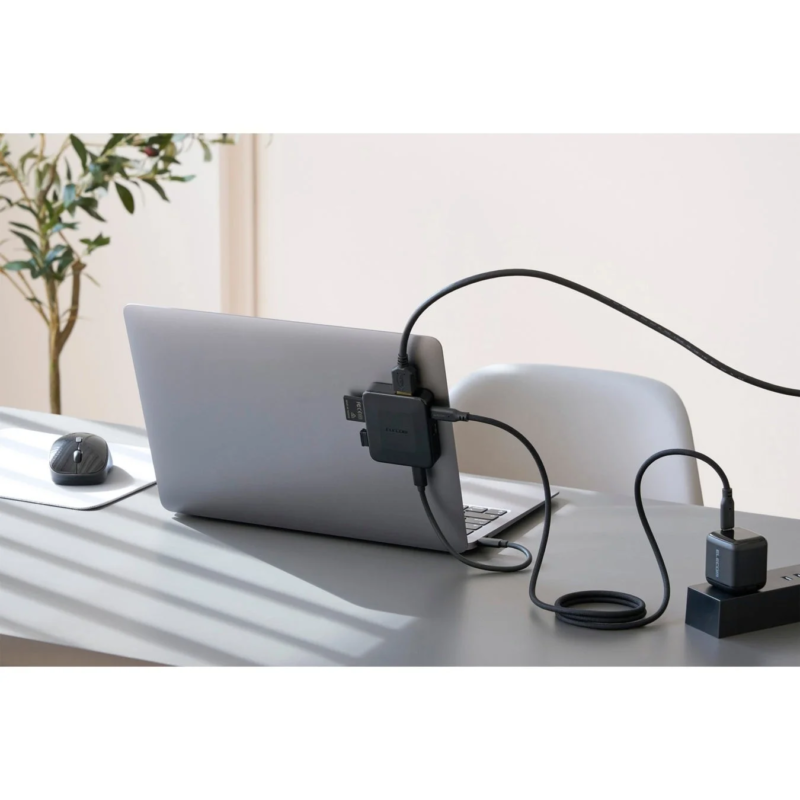

Cable Length: The cable length is approximately 0.17m, an optimal length that remains unobtrusive when fixed to the back of a notebook.

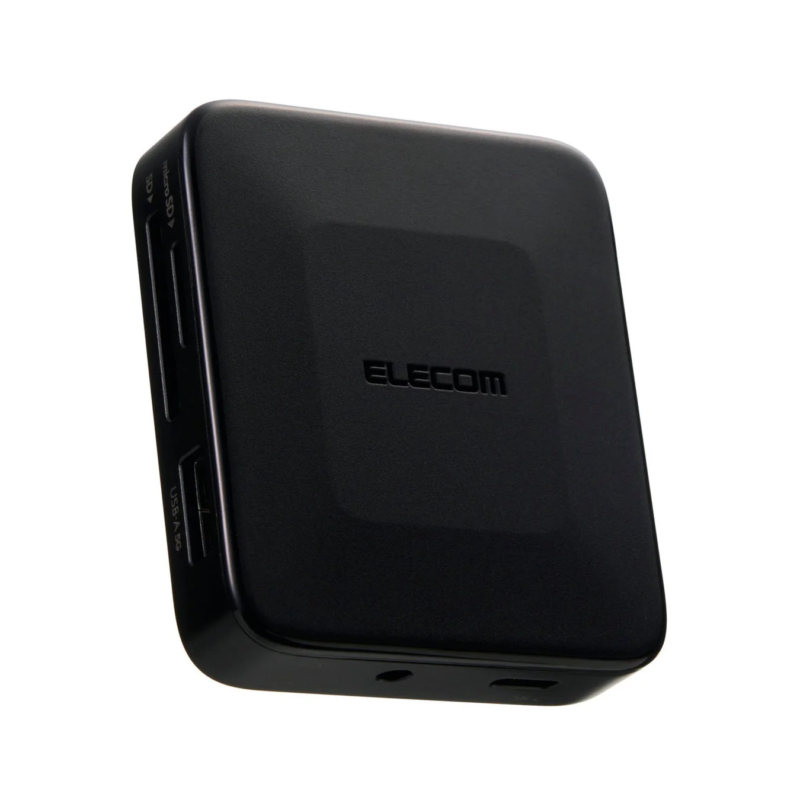

Durable Design: Constructed with a high-quality aluminum casing, offering excellent heat dissipation and a premium feel.

Charging smartphones or tablets via the data-only port is not recommended.
Connect the product directly to the USB Type-C port of your device. It cannot be used if connected via a USB hub or an expansion board’s USB Type-C port.
An AC charger is not included and must be purchased separately.
The product does not operate in pre-OS system screens or BIOS screens.
Some functions may not be available depending on the specifications of the connected USB Type-C device.
For corporate deployment, verification in the specific usage environment is recommended before purchase.
